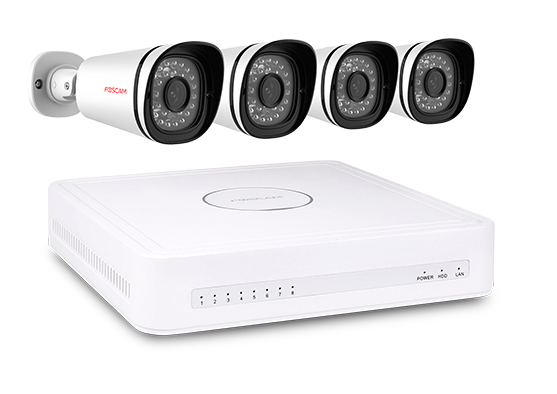

FN3108E-B4-1T 720P NVR Beveiligingssysteem



Artikelnummer: FN3108E-B4-1T Categorieën: ,


1TB harde schijf is geïnstalleerd voor FN3108-B4-1T en 2TB harde schijf voor FN3108E-B8-2T. NVR in dit systeem ondersteunt tot 4TB harde schijf.
Video opslag tijd is berekend op de basis van vooraf-geïnstalleerde harde schijf en de voorwaarde dat er geen extra camera’s zijn toegevoegd aan het systeem.
Slimme opname is van toepassing op handmatige of geplande opname mode. Het wordt geadviseerd om bewegingsdetectie-opname geselecteerd te hebben.


NVR Model FN3108E
Video Input IP Video Input 8 Channels HD IP camera input
Video Output HD Output 1×HD Out
VGA Output 1×VGA
Display Resolution 1920×1080/60Hz, 1280×720/60Hz, 1440×900/60Hz, 1024×768/60Hz
Recording Recording Resolution 720P per channel ( 8ch@720P )
Record Mode Manual / Time Scheduled / Motion Detect
Compression Format H.264
Playback Synchronous Playback 4 channel 720P synchronous video playback
Playback Mode Fast forward / Fast backward / Frame forward / Slow Play
HDD HDD 1TB security grade hard drive (pre-installed)
Capacity Up to 4TB
External Interface Network Interface 1× 10/100 Mbps RJ45 port
USB Interface 2× USB2.0 interface for mouse and external storage
Button 1× Power on/off button,1× Reset button
Software Computer Operating System Microsoft Windows XP, 7, 8, 8.1, Mac OS
Internet Viewing Microsoft IE8 and above versions , Firefox, Safari
Smart phone iOS, Android, 3G/4G Smartphones
Language Language 13 languages (Chinese, English, French, Hungarian, Czech, Dutch, Greek, Russian, Polish, Spanish, Portuguese, Italian, German)
Physical and Environmental Power Supply DC 48V/1.87A
Dimension(LxWxH) 234x234x52mm (9.21”x9.21”x2.05”)
Net Weight (g) 1200g
Operating Temperature -10°C~55°C (-4°F~131°F)
Operating Humidity 20%~85% (non-condensing)
Storage Temperature -20°C~60°C (-4°F~140°F)
Storage Humidity 0%~90% (non-condensing)
Camera Model FI9800E
Image Sensor Sensor Type 1/4″ CMOS
Video Quality 720p (1280×720)
Wide Dynamic Range
Backlight Compensation
Lens Lens Type f:4mm, F:2.0
IR Range 20 meters (66 feet)
Infrared Mode Automatic or manual
Diagonal Angle of View 70°
Horizontal View Angle 60°
Connectivity Ethernet RJ45
Software Features Video Format H.264
Multi-Stream Dual streams
Motion Detection
Physical and Environmental Waterproof IP66
Net Weight 255g
Power DC12V
Power Consumption <5W
Dimensions (LxWxH) 97x67x64mm (3.81”x2.63”x2.51”)
Certification FCC, IC, CE, RoHS, IP66
Warranty Limited 2-year warranty
Operating Temperature -10°C~60°C (14°F ~ 140°F)
Operating Humidity 10%~80% (non-condensing)
Storage Temperature -20°C~60°C (-4°F ~ 140°F)
Storage Humidity 0%~90% (non-condensing)
