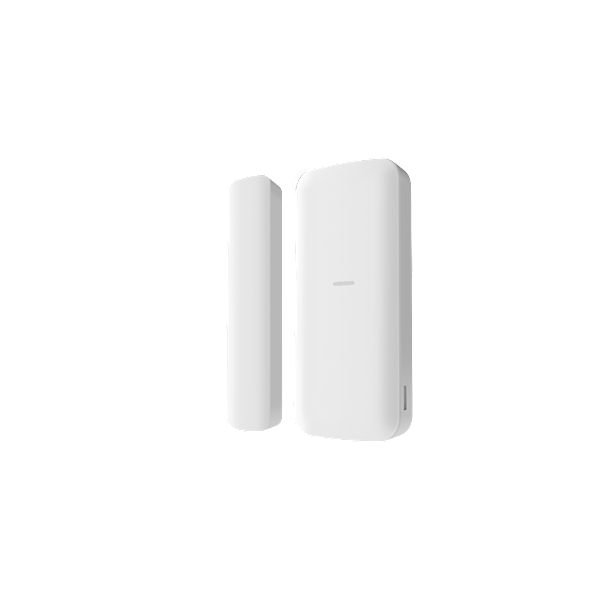

DS-PDMCS-EG2-WE, Draadloos Magneetcontact

* Slank ontwerp voor een onopvallende (onmerkbare) installatie
* Volledig op afstand configureerbaar via app
* Meerdere aanmeldingsmethoden en eenvoudig installatieontwerp
* Frequency hopping tegen storing voor betrouwbare overdracht

Detection Performance
Detection Method Opening Contact
Detection Gap 52mm Max

Feature
Digital Processing Support
Tamper Protection Front;Rear
Environment Temperature Indicator Support
Signal Strength Indicator Support

Interface
Power Switch Power Up Enrolling
LED Indicator Blue (Alarm)

Transmission
Transmission Technology Tri-X Wireless
Transmission Method Two-Way RF Wireless
Transmission Frequency 868MHz
Transmission Security AES-128 Encryption
Transmission Range(Free Space) 1.2Km
Frequency Hopping Support
Enrolling Method Power up;Remote ID;QR Code

Electrical Characteristics
Power Supply Battery Powered
Battery Type CR2450 x 1
Typical Voltage 3V
Standard Battery Life 3 Years

General
Operation Temperature-10 °C to 55 °C
Storage Temperature -20 °C to 60 °C
Operation Humidity 10% to 90%
Dimension(WxHxD)29mm × 69mm × 10mm 14mm × 69mm × 10mm
Weight 38g
Application Scenario Indoor
